EzRun MAX6 V3 160A 3-8S Sensorlös WP Fartreglage 1/6

Great Flexibility & Versatility

With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.

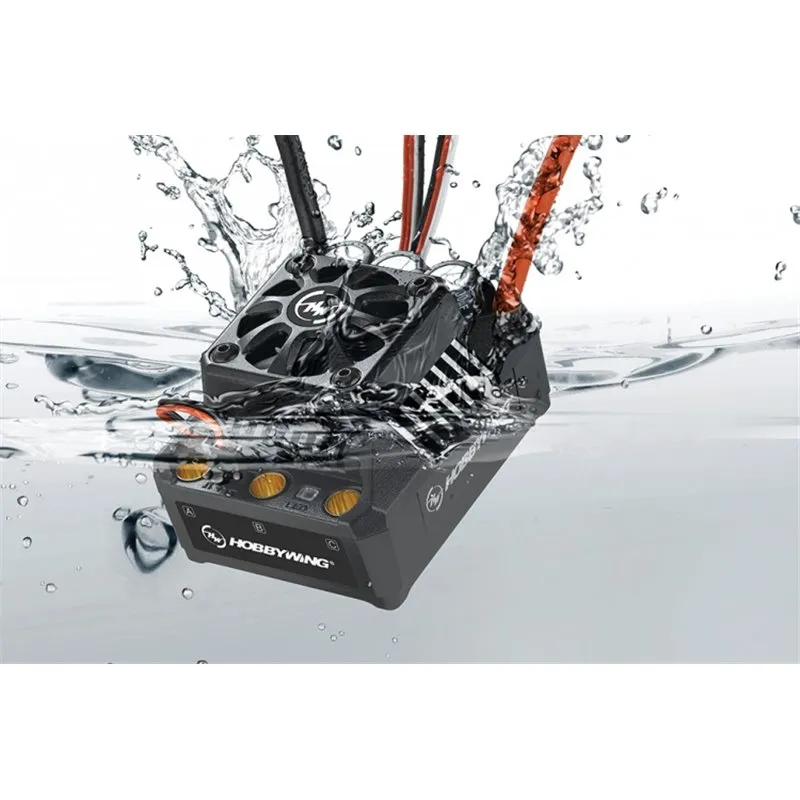

Applicable to All Weather Conditions





The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.



High Voltage Built-in BEC





The MAX6 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles.



Advanced and Secure Electronic Switch





The MAX6 features an electronic switch with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design.



Regular Firmware Updates Free of Charge





You can upgrade the MAX6 with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.



Maintenance Free





The ESC minus the cooling fan is basically maintenance free. The cooling fan is designed to be shockproof, which in turn will reduce damage brought on by frequent vehicle high jumps and landings on hard surfaces.



Built-in Anti-Spark System





The MAX6 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to burnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).



Wide Range of Applications

MAX6 Applications:

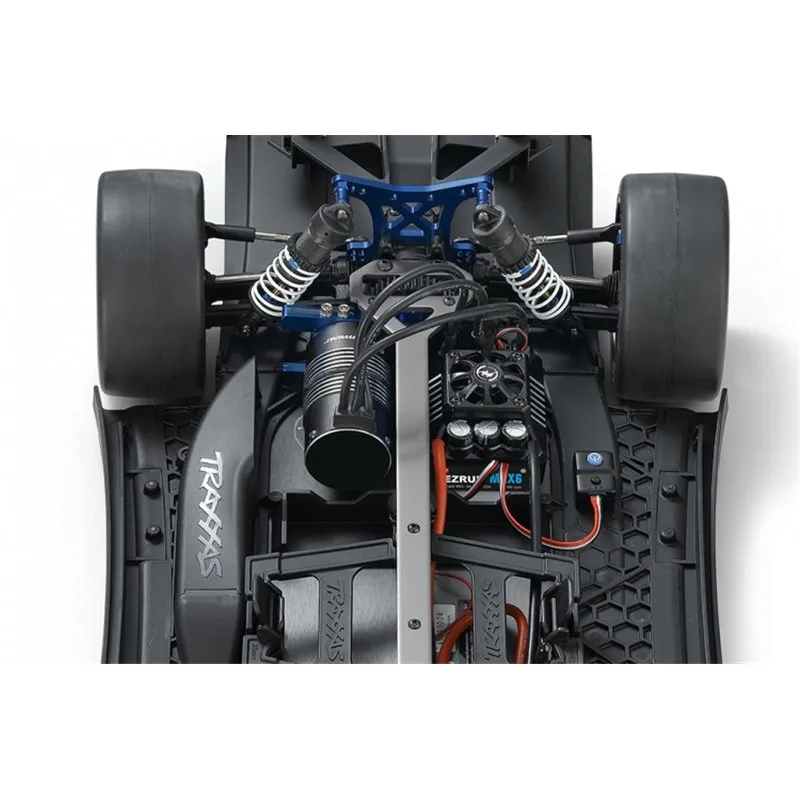

This ESC is applicable to various 1/6^th & 1/7^th scale vehicles like the Traxxas XO-1, and also suitable to various 1/8^th scale heavy vehicles like the CEN GST-E. It's the ideal option for high-end aggressively powered builds.



Specifications







• Scale: 1/6^th 1/7^th

• Brushed/Brushless: BL

• Sensored/Sensorless: SL

• Waterproof: WP

• Cont./Peak Current: 160A/1050A

• Input: 3-8S LiPo/9-24 Cells NiMH

• BEC Output: Switch Mode:6V/7.4V,6A







Wires & Connectors












• Input Wires: Red-10AWG-200mm*1/Black-10AWG-200mm*1

• Output Wires: Black-10AWG-200mm*3

• Input Connectors: No

• Output Connectors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)







Fan












• Size: 35.0x35.0x10.0mm

• Voltage Range: 5-7.4V

• Powered by: Powered by BEC







ESC Programing via












• SET Button on ESC: Supported

• LED Program Box: Supported

• LCD Program Box: Supported

• WiFi Module: Supported

• Program Port: FAN/Program Port







Firmware












• Firmware Upgrade: Supported







Size & Weight












• Size: 70.0x56.0x46.5mm

• Weight: 240g







Applications












• Motors: SL BL Motors/SD BL Motors(only in SL mode)

• Vehicles: 1/6^th 1/7^th Touring Car/Buggy/Truck

• KV Rating/T Count: 6S LiPo: KV≤1500/8S LiPo: KV≤1200(5892 Size Motors)






This is an extremely powerful brushless motor system. For your safety and the safety of those around you, we strongly recommend removing the pinion gear before performing calibration and programming functions with this system, and keeping wheels in the air when you turn on the ESC.
